ATX

Powerful Computing · Boundless Expansion

Accelerate Edge AI Computing Innovation

ATX

HomeProductEmbedded SystemATX
M24-ARLS-ATX08

Decenta ATX08 is a standard ATX form factor motherboard, which is built on Intel? Q870 Chipset.  It has strong performance, rich interfaces, and NPU, which meets the needs of AI applications and can be widely used in various scenarios.

Main Features

  • Intel? LGA 1851 Socket: Ready for Core? Ultra Desktop Processors (Series 2)

  • Support 4x DDR5 6400MT/s U-DIMM, Dual channel, Up to 192GB

  • Support VGA/HDMI?/DP/eDP Quad-display

  • 1x M.2 E-Key 2230 Slot for Wi-Fi module, Support Wi-Fi 7 & Bluetooth 5.4

  • 2x M.2 M-Key 2242/2280 Slots for SSD

  • 2x PCIe 5.0 X16 Slots(Support 1x16 or 2x8 mode), 2x PCIe 4.0 X4 Slots(X4 Signal), 2x PCIe 4.0 X4 Slots(X2 Signal), 1x PCI Slot

  • Support TPM 2.0 encryption technology

M24-ARLS-ATX08

3

2

M24-ARLS-ATX08

3

2

  • Product Specifications

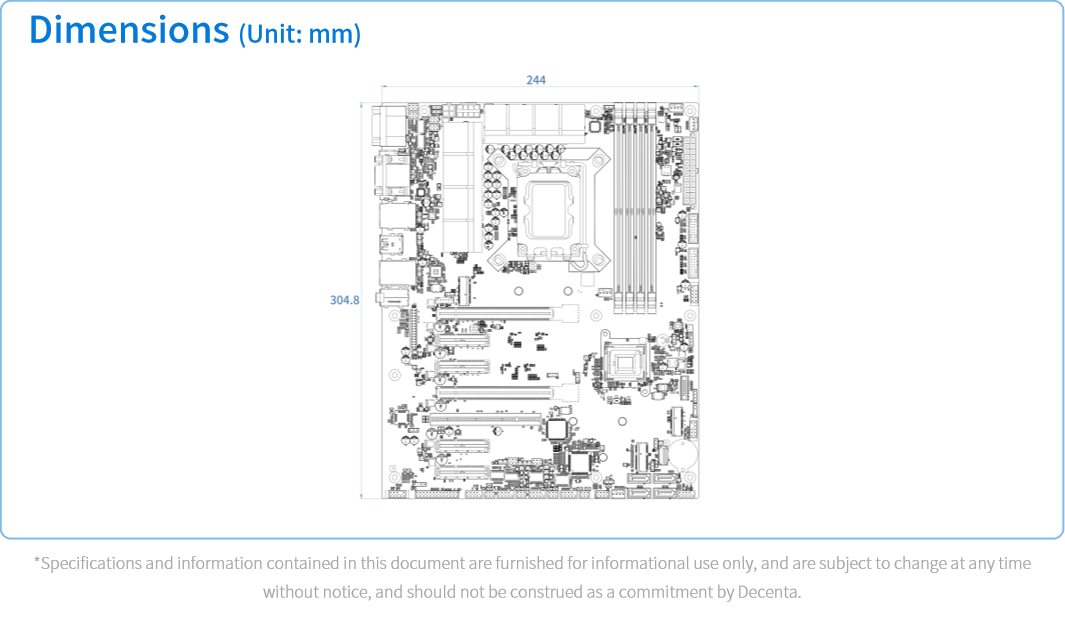

  • Product Dimension Drawing

Document
Download

Fill in and verify your email to download detailed product documents.

  • Get Verification Code
